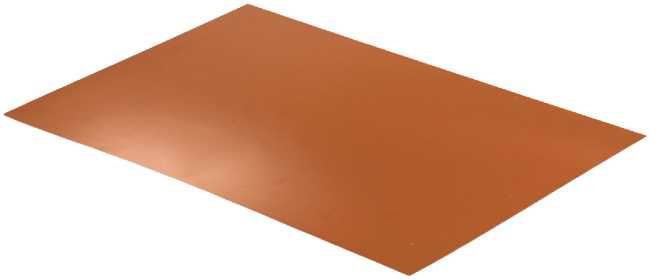

高端環保板High-end Eco-friendly Board
PCB鉆孔材料專家
產品用途：
?適用于高檔高精密電路板的鉆孔。
Application:
? Suitable for use in high-class and precision PCB drilling
產品特性：
?質量穩定,性價比高；
?獨特的工藝增加表面硬度，使得此產品可以替代酚醛墊板使用降低成本：
具有堅實的表面和拉伸中間的核心?？捎糜诰芏鄬与娐钒迳系目住Ｋ菍槿〈尤﹤浞莅?，特別是針孔孔徑，多層板和柔性板。
1、表面硬度與酚醛板相同，但尺寸穩定，不易變形。
2、使用后易處理，符合環保標準。
Special Features:
? Stable quality, high performance-price ratio;
? Unique process to increase the surface hardness, so that this product can be used instead of phenolic pads to reduce costs: With a solid surface and a core between the stretch. Can Be used for precision Multilayer Circuit Board on the hole. It is designed to replace phenolic backing boards, especially with pin pore sizes, multilayer boards and flexible boards.
1、The surface hardness is the same as that of the phenolic board, but the size is stable and it is not easy to be deformed.
2、Easy to handle after use, in line with environmental standards.
技術參數(Technical Data):
型號 Type | 厚度 Thickness (mm) | 厚度公差 Thickness Tolerance (mm) | 表面硬度 Surface Hardness (Shore-D) | 密度 Density (Kg/m3) | 規格 Size （inch） | 尺寸公差 Size Tolerance (mm) | 翹曲度 Warpage |
DXE-25-HMW | 2.5 | ±0.15 | 85± 5 | 960±15 | 37"x49" | ± 3 | ≤0.6% 的對角線 |
DXE-20-HMW | 2.1 | 85± 5 | 960±15 | 41"x49" | |||
DXE-15-HMW | 1.6 | 85± 5 | 960±15 | ||||
DXE-25-UMW | 2.6 | 85± 5 | 960±15 | 43"x49" |
HMW-M高端環保板
?外觀：表面平整、光滑，無坑包等缺陷，允許有不規則色差。
?可裁切訂制其它尺寸
HMW-M HIGH-END Environmental Protection Board
?APPEARANCE: The surface is flat, smooth, no pits and other defects, allowing irregular chromatic aberration.
?Can be tailored to other dimensions
